Accord to market research,we have developed several types paper bubble making machine,one is the mini type paper bubble machine(finished paper roll width 100-300mm),this machine is mainly used in the office,small printing shop,home using.another is the bigger industrial heavy duty bubble paper machine,it has bigger width such as 800-1600mm,and both these two machine have the finished paper in roll type.But some customer still has the requirement on the sheet paper bubble,so we developed the 3rd type paper bubble machine,this machine can cut roll to sheet inline while machine do embossing in the same time to avoid cut the bubble paper to sheet separately later by cutting machine(this will make bubble some down in strength).
This is our newest design kraft paper embossing machine in order to make the kraft paper with embossing bubble,and this type kraft paper is widely used in e-commerce packing industry.
Machine model | EM-PB800 |
Max material width | 800mm |
Paper thickness | Min. 60gsm |
Machine working speed | 0-60m/min |

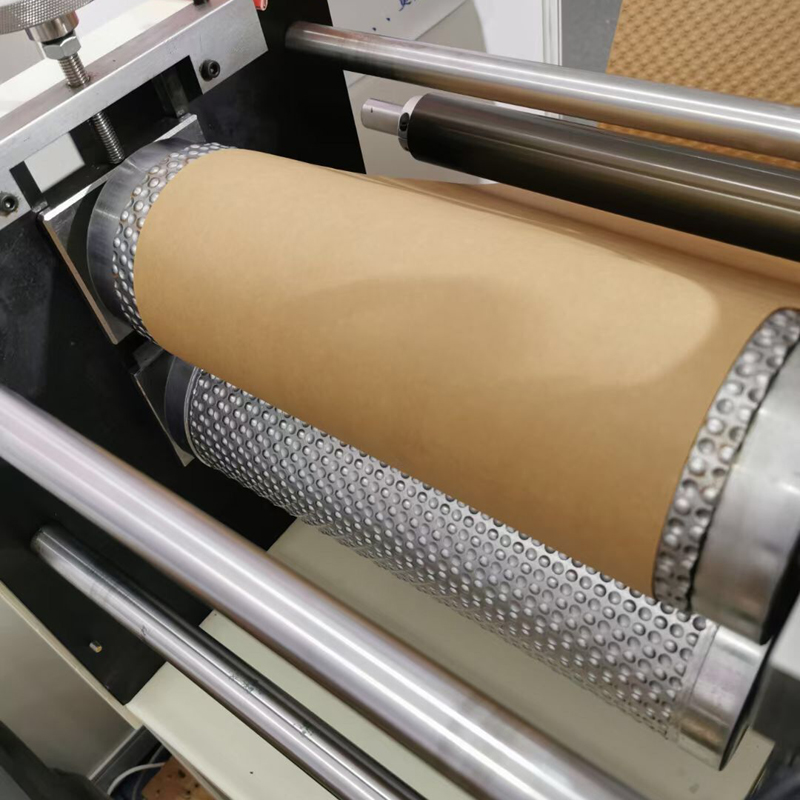

Embossing form | vertical upper and lower concave-convex rollers |
Heating model | Electric heating |
Max Unwinding diameter | 1200mm |
Max Rewinding diameter | 1000mm |
Unwinding type | Automatic lifting system |
Unwinding shaft | 3” inflatable air shaft |
Rewinding shaft | 3” inflatable air shaft |
Machine size | 2100x1600x1400mm |
Machine weight | 1200KG |
