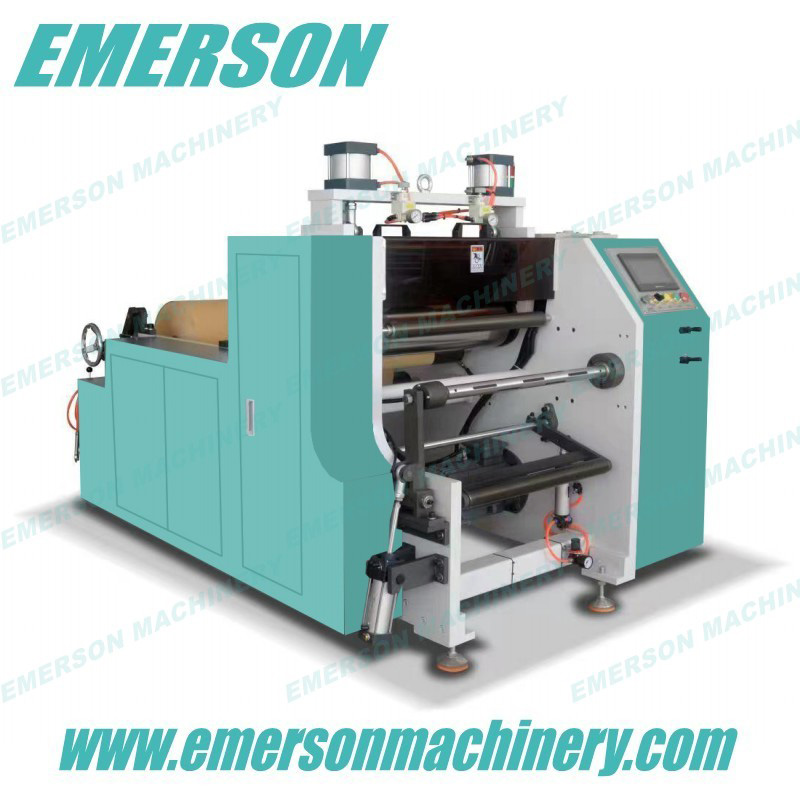

Kraft Honeycomb Paper Machine

Except this economic type honeycomb paper machine,we also have another two automatic honeycomb paper forming machine,both these two automatic machine has the function of changing finished paper roll automatically inline,only difference is one machine finished paper roll has air air shaft inside while another without.So we total have 3 type honeycomb paper machine for the different customer to choose.Anway the speed for all 3 type machines is same 200m/min.

Application

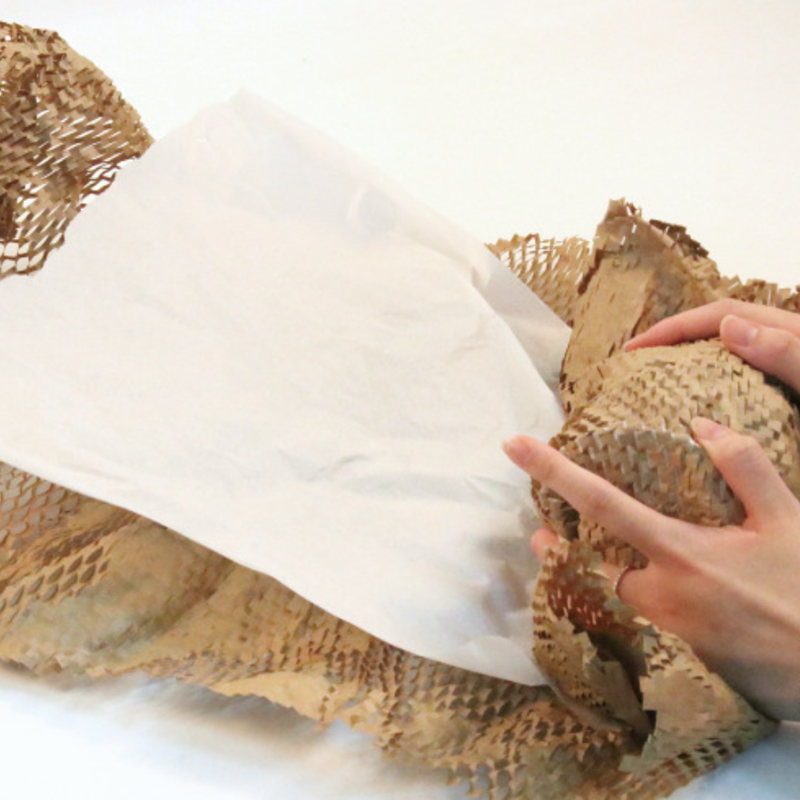

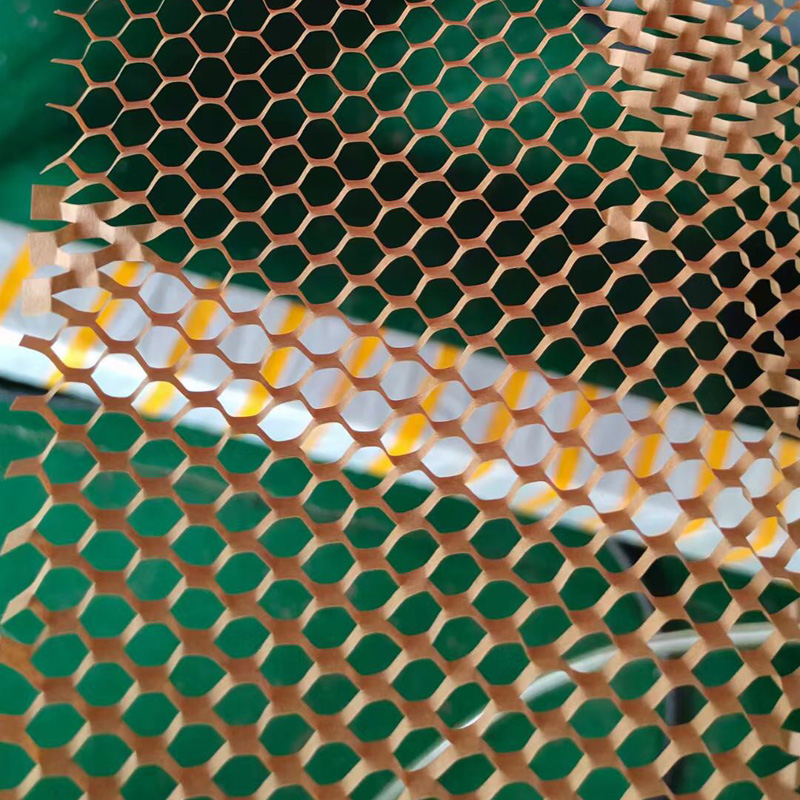

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.

Machine features

1. This honeycomb paper machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.
2. The unwinding,cutting and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device,automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mould up and down.
8. Roll to sheet cutting is optional.(can match our paper wrapper)

Technical parameters
